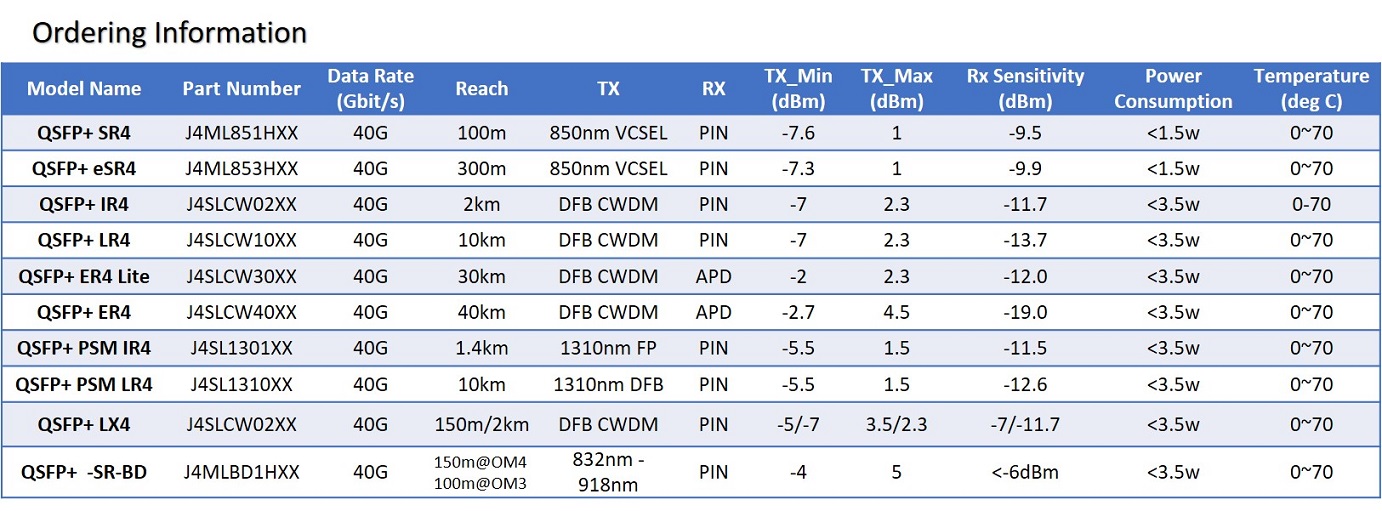

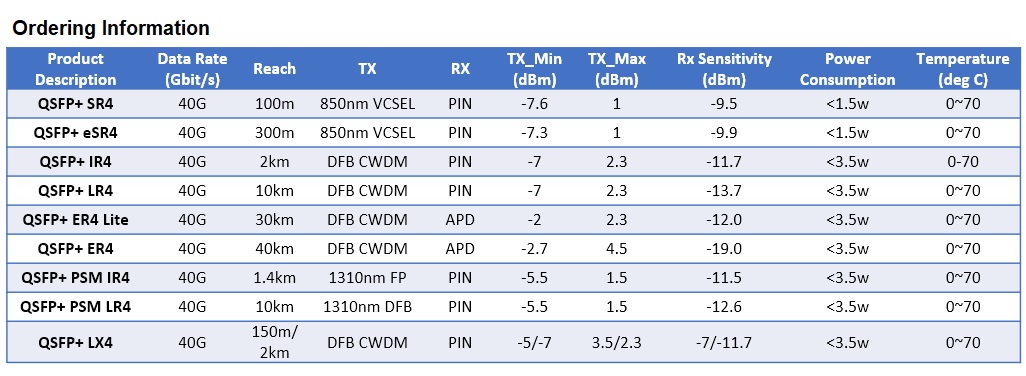

Model Name |
Part Number |
Data Rate (Gbit/s) |
Reach |
TX |
RX |
TX_Min (dBm) |
TX_Max (dBm) |
Rx Sensitivity (dBm) |
Power Consumption |
Temperature (deg C) |
|
QSFP+ SR4 |
J4ML851HXX |
40G |
100m |
850nm VCSEL |
PIN |
-7.6 |
1 |
-9.5 |
<1.5w |
0~70 |
|
QSFP+ eSR4 |
J4ML853HXX |
40G |
300m |
850nm VCSEL |
PIN |
-7.3 |
1 |
-9.9 |
<1.5w |
0~70 |
|
QSFP+ IR4 |
J4SLCW02XX |
40G |
2km |
DFB CWDM |
PIN |
-7 |
2.3 |
-11.7 |
<3.5w |
0-70 |
|
QSFP+ LR4 |
J4SLCW10XX |
40G |
10km |
DFB CWDM |
PIN |
-7 |
2.3 |
-13.7 |
<3.5w |
0~70 |
|
QSFP+ ER4 Lite |
J4SLCW30XX |
40G |
30km |
DFB CWDM |
APD |
-2 |
2.3 |
-12.0 |
<3.5w |
0~70 |
|
QSFP+ ER4 |
J4SLCW40XX |
40G |
40km |
DFB CWDM |
APD |
-2.7 |
4.5 |
-19.0 |
<3.5w |
0~70 |
|
QSFP+ PSM IR4 |
J4SL1301XX |
40G |
1.4km |
1310nm FP |
PIN |
-5.5 |
1.5 |
-11.5 |
<3.5w |
0~70 |
|
QSFP+ PSM LR4 |
J4SL1310XX |
40G |
10km |
1310nm DFB |
PIN |
-5.5 |
1.5 |
-12.6 |
<3.5w |
0~70 |
|
QSFP+ LX4 |
J4SLCW02XX |
40G |
150m/2km |
DFB CWDM |
PIN |
-5/-7 |
3.5/2.3 |
-7/-11.7 |
<3.5w |
0~70 |
|
QSFP+ -SR-BD |
J4MLBD1HXX |
40G |
150m@OM4 100m@OM3 |
832nm - 918nm |
PIN |
-4 |
5 |
<-6dBm |
<3.5w |
0~70 |
.jpg)
Key Features
- Hot Pluggable
- Aggregate Bandwidth of up to 40G
- 4 Independent Full-duplex Channels
- IEEE 802.3ba Compliant
- QSFP+ MSA Compliant
- Operating Teperature:0~70℃
- Single 3.3V Power Supply
Applications
- High-performance Backplane
- Computer Cluster Cross-connect
- Switch, Router and HBAs
- 10G/40G Ethernet (XAUI)
- Infiniband -SDR, DDR, QDR
