MiniSAS Cable Series

MiniSAS Cable



SFF-8644 to SFF-8644

Mini SAS HD receptacle assembly is the next-generation SAS high-density high-speed I/O interface. This interface was adopted for the SAS 2.1 standard and proposed for SAS 3.0 standard, and is designed to support 6G and future 12G SAS applications. The assembly is offered in 4x, 8x, and 16x versions. The reduced size of the Mini SAS HD system provides additional space for system designers. While a low profile PCIe card can accept four 4x Mini SAS connectors, it can only accept two of Mini SAS connectors.

The passive Mini SAS HD copper cable assembly is up to 12Gbps data rates per channel. The EEPROM signature enables the host to identify what type and length of cable is connected to its port, and can be customized for any application. An improved latch design reduces the insertion force and increases the retention force.

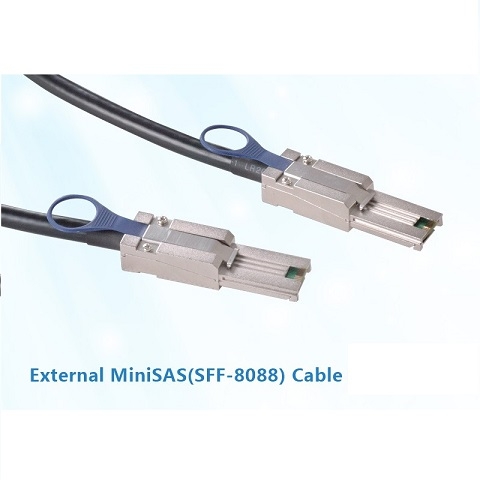

SFF-8088 to SFF-8088

Mini-Serial Attached SCSI (Mini-SAS) cable assemblies -- high-performance, cost-effective cabling solutions for high-speed serial buses supporting 4X SAS architectures. The copper cables are designed to be fully compliant with 3Gb/s SAS and 6Gb/s SAS protocols.

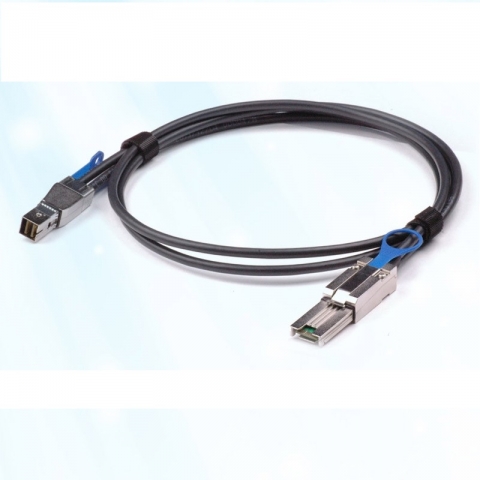

SFF-8644 to SFF-8088

External 4x Mini-SAS (SFF-8088) to HD Mini-SAS (SFF-8644) Cables function as a "Hybrid Cable"; thus permitting the installer to link up legacy Mini-SAS devices with the latest generation of Mini-SAS HD (High Density) hardware. This 4x HD Mini-SAS to Mini-SAS cable features a universal keyed SFF-8644 pull to release lanyard connector on one end and a universal keyed SFF-8088 pull-to-release lanyard connector on the other, each of which are fully intermateabie with ANY manufacturer's 4x iPass+ HD (Mini-SAS HD) and 26-pin Mini-SAS receptacle ports.

length as below:

  • 1m (3.3 ft)

  • 2m (6.6 ft)

  • 3m (9.9 ft)

  • 5m (16.5 ft)
