40G QSFP+ & Breakout Cable Series

40G QSFP+ Breakout AOC

QSFP+ AOC is a high data rate parallel active optical cable (AOC), to overcome the ban...
詳細介紹


Package

Part Number

Data Rate

Reach
(km)

Wavelength
(nm)

Power Consumption

Temp

(deg C)

QSFP+ AOC

QSFP-H40G-AOCXXXM

40G

300m

850

<1.5W

0~70

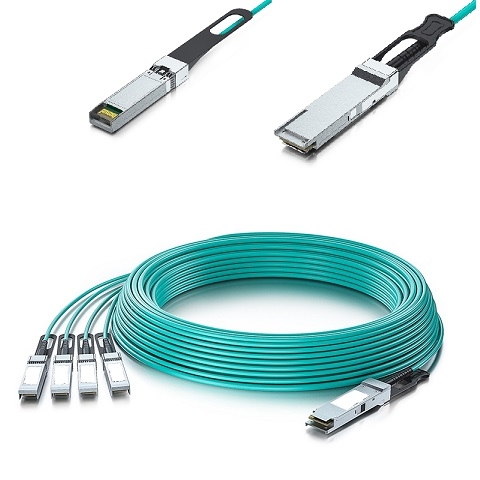

QSFP+ to SFP+ AOC

QSFP-4X10G-AOCXXXM

40G to 4x10G

150m

850

<1.5W

0~70

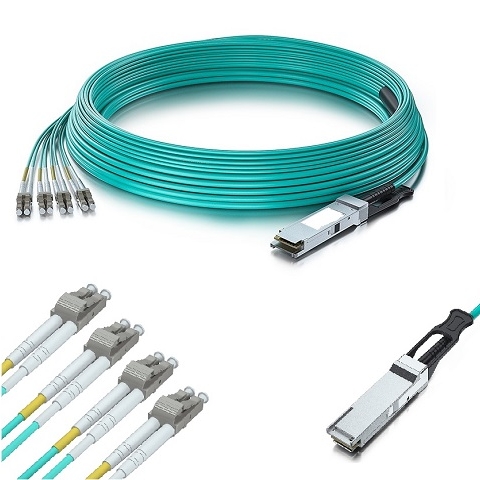

40G QSFP+ to 8x LC AOC

QSFP-4DLC-AOCXXXM

40G to 8x LC Connetor

100m

850

<1.05W

0~70

QSFP+ 56G AOC

QSFP-H56G-AOCXXXM

56 G

100m

850

<1.5W

0~70

Note: Cable Length (XXXM)
1M=001M, 2M=002M, 10M=010M, 100M=100M or desired the length of cable shall be supplier



Features

40GBase QSFP+ to QSFP+
56GBase QSFP+ to QSFP+
40GBase QSFP+ to 4x 10G SFP+ Connectors
4 independent full-duplex channels
Up to 12.5Gbps data rate per channel
QSFP MSA compliant
Up to 100m transmission
OM3 MMF Cable
Operating case temperature: 0ºC~70ºC
Single 3.3V power supply
Typical 0.8W operation power each terminal
RoHS compliant
Infiniband SDR/DDR/QDR
2/4/8G Fiber Channel



Applications

InfiniBand FDR,QDR,DDR,and SDR
40G Ethernet, 10GEthernet
TOR Switch
Datacom and Telecom switch or router backplane connection
High performance computing interconnect
