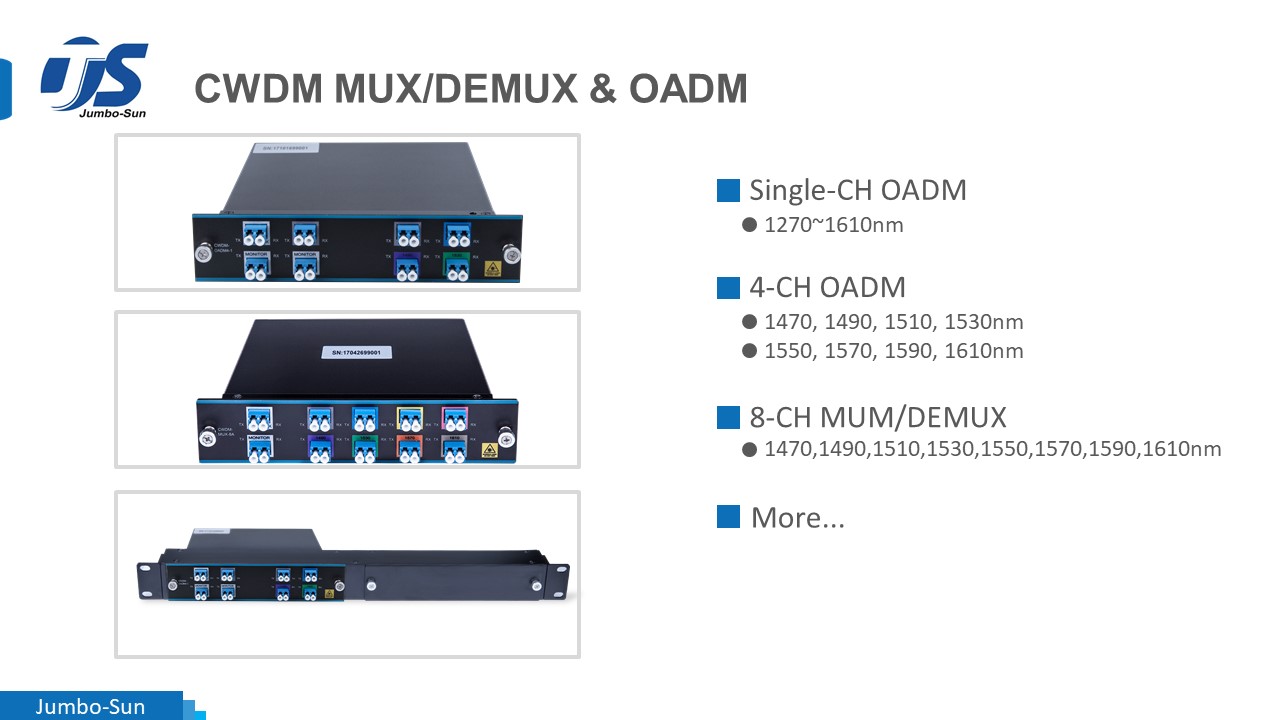

Function |
P/N |
Channel |
Wavelength |
Fiber Type |
Insertion Loss |
Monitor |
|
MUX/DEMUX |
CWDM-MUX8A=C |
8 |
1470~1610nm (20 spacing) |
Dual Fiber LC |
≤2.5 |
1 |
|
MUX/DEMUX & OADM |
CWDM-OADM4-1=C |
4 |
1470~1530nm (20 spacing) |
Dual Fiber LC |
≤1.5 |
2 |
|
MUX/DEMUX & OADM |
CWDM-OADM4-2=C |
4 |
1550~1610nm (20 spacing) |
Dual Fiber LC |
≤1.5 |
2 |
|
OADM |
CWDM-OADM1-1470=C |
1 |
1470nm |
Dual Fiber LC |
≤0.8 |
2 |
|
OADM |
CWDM-OADM1-1490=C |
1 |
1490nm |
Dual Fiber LC |
≤0.8 |
2 |
|
OADM |
CWDM-OADM1-1510=C |
1 |
1510nm |
Dual Fiber LC |
≤0.8 |
2 |
|
OADM |
CWDM-OADM1-1530=C |
1 |
1530nm |
Dual Fiber LC |
≤0.8 |
2 |
|
OADM |
CWDM-OADM1-1550=C |
1 |
1550nm |
Dual Fiber LC |
≤0.8 |
2 |
|
OADM |
CWDM-OADM1-1570=C |
1 |
1570nm |
Dual Fiber LC |
≤0.8 |
2 |
|
OADM |
CWDM-OADM1-1590=C |
1 |
1590nm |
Dual Fiber LC |
≤0.8 |
2 |
|
OADM |
CWDM-OADM1-1610=C |
1 |
1610nm |
Dual Fiber LC |
≤0.8 |
2 |
