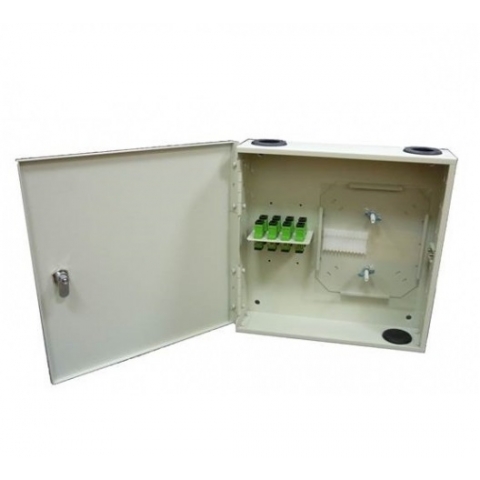

Fiber Optic Wall Mount Cabinet can be used as an interconnect or cross-connect in any telecommunications room and can use fiber adapter panels and cassettes. Cabinet are designed to manage and organize fiber distribution in areas where space is limited.
Specifications
|
Ports |
Door |
Dimension |
Adapter |
|
4、8 |
1 |
225x225x20mm |
FC, SC,ST, LC |
|
12、24 |
2 |
315x315x100mm |
|
|
48 |
2 |
370x350x110mm |
Ordering Information
|
Part Number |
Description |
|
JWM-4F-1A |
4-port, FC, 225x225x20mm, one door |
|
JWM-4S-1A |
4-port, SC, 225x225x20mm, one door |
|
JWM-4T-1A |
4-port, ST, 225x225x20mm, one door |
|
JWM-4L-1A |
4-port, LC, 225x225x20mm, one door |
|
JWM-8F-1A |
8-port, FC, 225x225x20mm, one door |
|
JWM-8S-1A |
8-port, SC, 225x225x20mm, one door |
|
JWM-8T-1A |
8-port, ST, 225x225x20mm, one door |
|
JWM-8L-1A |
8-port, LC, 225x225x20mm, one door |
|
JWM-12F-2B |
12-port, FC, 315x315x100mm, two doors |
|
JWM-12S-2B |
12-port, SC, 315x315x100mm, two doors |
|
JWM-12T-2B |
12-port, ST, 315x315x100mm, two doors |
|
JWM-12L-2B |
12-port, LC, 315x315x100mm, two doors |
|
JWM-24F-2B |
24-port, FC, 315x315x100mm, two doors |
|
JWM-24S-2B |
24-port, SC, 315x315x100mm, two doors |
|
JWM-24T-2B |
24-port, ST, 315x315x100mm, two doors |
|
JWM-24L-2B |
24-port, LC, 315x315x100mm, two doors |
|
JWM-48F-2C |
48-port, FC, 370x350x110mm, two doors |
|
JWM-48S-2C |
48-port, SC, 370x350x110mm, two doors |
|
JWM-48T-2C |
48-port, ST, 370x350x110mm, two doors |
|
JWM-48L-2C |
48-port, LC, 370x350x110mm, two doors |
Feature
Aluminum Housing, Epoxy Coating, Beige color
Easy Handle of Modular Adapter Panel
Rubber Grommets Seals For Cable Holes
Various Connector Styles and Types Available
Compatible With Industry Standard equipment frames
Application
LAN/WAN
Telecommunication Closets
Customer Premise
Remote Terminals
Data Centers
