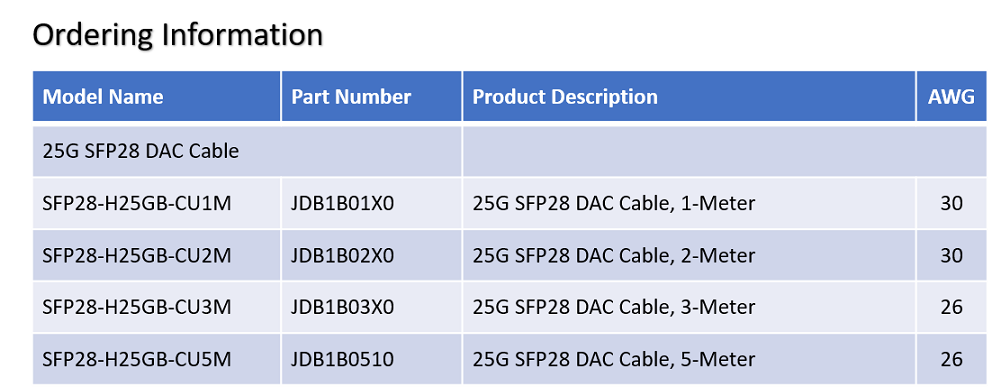

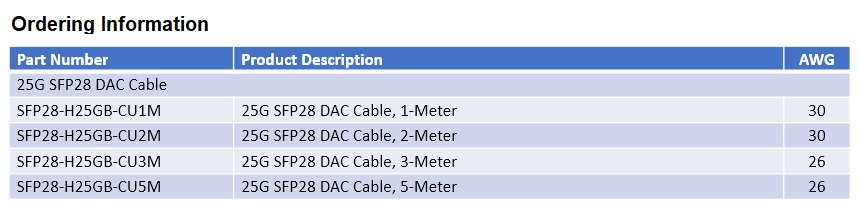

Model Name |
Part Number |
Product Description |
AWG |
|
25G SFP28 DAC Cable |
|||
|
SFP28-H25GB-CU1M |
JDB1B01X0 |
25G SFP28 DAC Cable, 1-Meter |
30 |
|
SFP28-H25GB-CU2M |
JDB1B02X0 |
25G SFP28 DAC Cable, 2-Meter |
30 |
|
SFP28-H25GB-CU3M |
JDB1B03X0 |
25G SFP28 DAC Cable, 3-Meter |
26 |
|
SFP28-H25GB-CU5M |
JDB1B0510 |
25G SFP28 DAC Cable, 5-Meter |
26 |
.png)
Features
The 25G DAC passive copper cable contains a single high-speed copper pair, operating at data rates of up to 25 Gb/s. The cables are compliant with IEEE P802.3by Ethernet standard and SFF-8402 SFP28 standard. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system 10Gtek's unique quality passive copper cable solutions provide efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous production testing ensures the best out-of -the-box installation experience, performance, and durability.
●Up to 28Gb/s data rates
● Wide operating temperature range:
Standard: 0℃ to +70℃
Industrial: -20℃ to +80℃
Applications
● 25G Ethernet
Compliant
● Compliant with SFF-8402 and SFF-8432
● RoHS compliant
