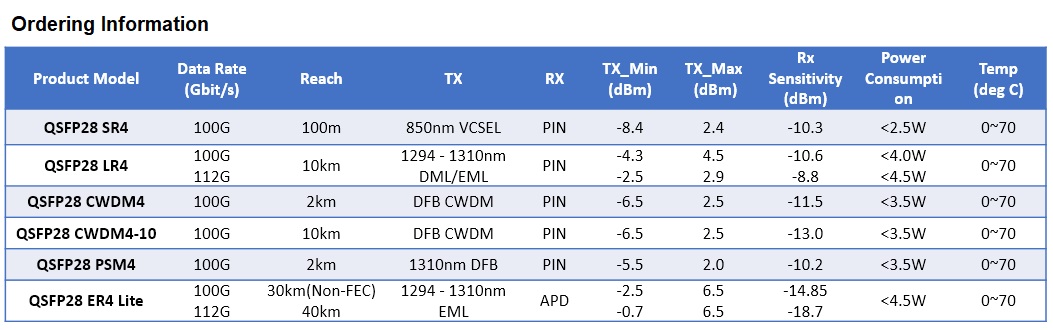

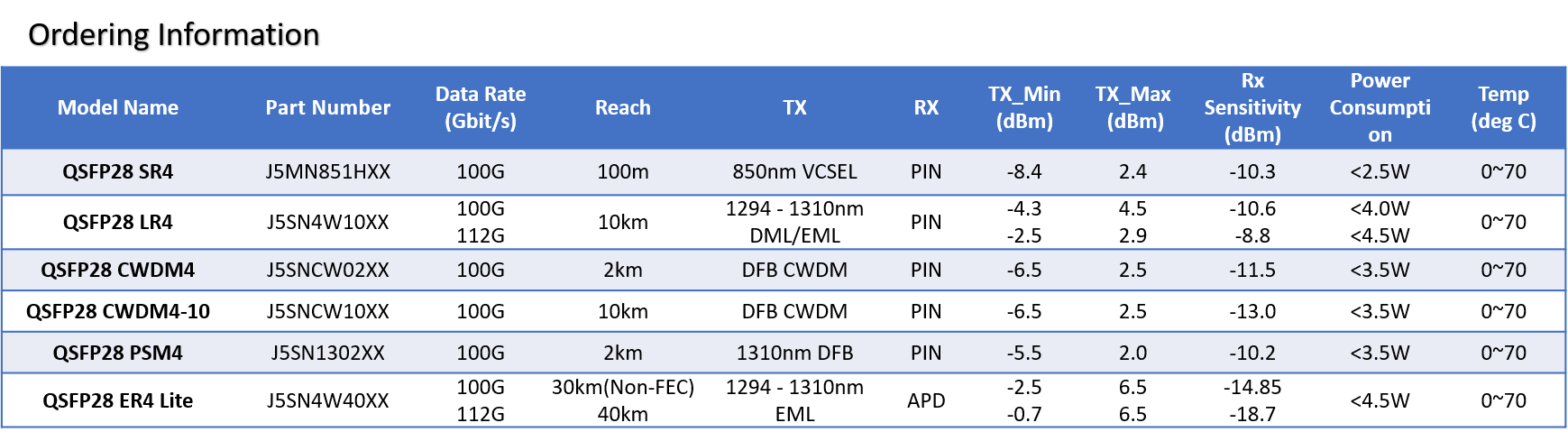

Model Name |
Part Number |
Data Rate (Gbit/s) |
Reach |
TX |
RX |
TX_Min (dBm) |
TX_Max (dBm) |
Rx Sensitivity (dBm) |
Power Consumption |
Temp (deg C) |
|
QSFP28 SR4 |
J5MN851HXX |
100G |
100m |
850nm VCSEL |
PIN |
-8.4 |
2.4 |
-10.3 |
<2.5W |
0~70 |
|
QSFP28 LR4 |
J5SN4W10XX |
100G 112G |
10km |
1294 - 1310nm DML/EML |
PIN |
-4.3 -2.5 |
4.5 2.9 |
-10.6 -8.8 |
<4.0W <4.5W |
0~70 |
|
QSFP28 CWDM4 |
J5SNCW02XX |
100G |
2km |
DFB CWDM |
PIN |
-6.5 |
2.5 |
-11.5 |
<3.5W |
0~70 |
|
QSFP28 CWDM4-10 |
J5SNCW10XX |
100G |
10km |
DFB CWDM |
PIN |
-6.5 |
2.5 |
-13.0 |
<3.5W |
0~70 |
|
QSFP28 PSM4 |
J5SN1302XX |
100G |
2km |
1310nm DFB |
PIN |
-5.5 |
2.0 |
-10.2 |
<3.5W |
0~70 |
|
QSFP28 ER4 Lite |
J5SN4W40XX |
100G 112G |
30km(Non-FEC) 40km |
1294 - 1310nm EML |
APD |
-2.5 -0.7 |
6.5 6.5 |
-14.85 -18.7 |
<4.5W |
0~70 |
.png)
Key Features
- Supports 103.1 / 112Gbps aggregate bit rates
- Single 3.3V Power Supply and Industry Lowest Power dissipation
- Up to 100m transmission on MMF OM4 and 2/10/20/0/40km over SMF.
- Hot-Pluggable QSFP Footprint
- Class 1 FDA and IEC60825-1 Laser Safety Compliant
- RoHS6 Compliant
- Operating Case Temperature Standard: -5~+75C
- Compliant with QSFP MSA Specification
- I2C interface with integrated Digital Diagnostic Monitoring
- 4x25G electrical interface
