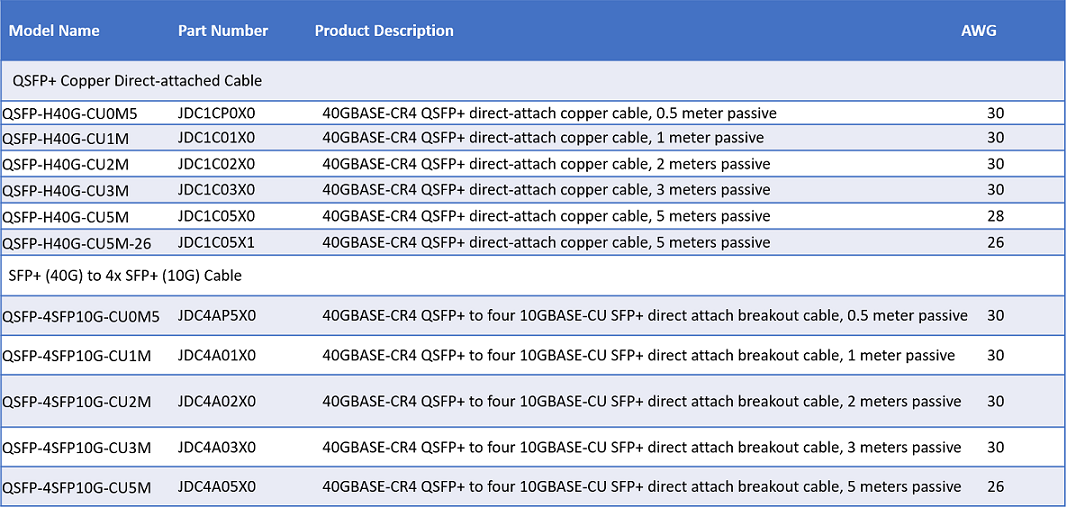

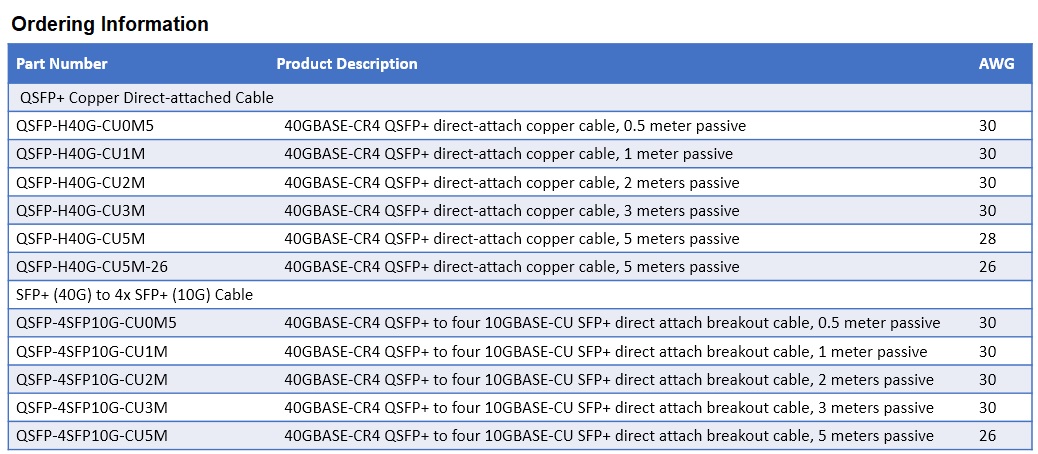

Model Name |
Part Number |
Product Description |
AWG |
|
|
QSFP+ Copper Direct-attached Cable |
||||
|
QSFP-H40G-CU0M5 |
JDC1CP0X0 |
40GBASE-CR4 QSFP+ direct-attach copper cable, 0.5 meter passive |
30 |
|
|
QSFP-H40G-CU1M |
JDC1C01X0 |
40GBASE-CR4 QSFP+ direct-attach copper cable, 1 meter passive |
30 |
|
|
QSFP-H40G-CU2M |
JDC1C02X0 |
40GBASE-CR4 QSFP+ direct-attach copper cable, 2 meters passive |
30 |
|
|
QSFP-H40G-CU3M |
JDC1C03X0 |
40GBASE-CR4 QSFP+ direct-attach copper cable, 3 meters passive |
30 |
|
|
QSFP-H40G-CU5M |
JDC1C05X0 |
40GBASE-CR4 QSFP+ direct-attach copper cable, 5 meters passive |
28 |
|
|
QSFP-H40G-CU5M-26 |
JDC1C05X1 |
40GBASE-CR4 QSFP+ direct-attach copper cable, 5 meters passive |
26 |
|
|
QSFP+ (40G) to 4x SFP+ (10G) Cable |
||||
|
QSFP-4SFP10G-CU0M5 |
JDC4AP5X0 |
40GBASE-CR4 QSFP+ to four 10GBASE-CU SFP+ direct attach breakout cable, 0.5 meter passive |
30 |
|
|
QSFP-4SFP10G-CU1M |
JDC4A01X0 |
40GBASE-CR4 QSFP+ to four 10GBASE-CU SFP+ direct attach breakout cable, 1 meter passive |
30 |
|
|
QSFP-4SFP10G-CU2M |
JDC4A02X0 |
40GBASE-CR4 QSFP+ to four 10GBASE-CU SFP+ direct attach breakout cable, 2 meters passive |
30 |
|
|
QSFP-4SFP10G-CU3M |
JDC4A03X0 |
40GBASE-CR4 QSFP+ to four 10GBASE-CU SFP+ direct attach breakout cable, 3 meters passive |
30 |
|
|
QSFP-4SFP10G-CU5M |
JDC4A05X0 |
40GBASE-CR4 QSFP+ to four 10GBASE-CU SFP+ direct attach breakout cable, 5 meters passive |
26 |
|
Features

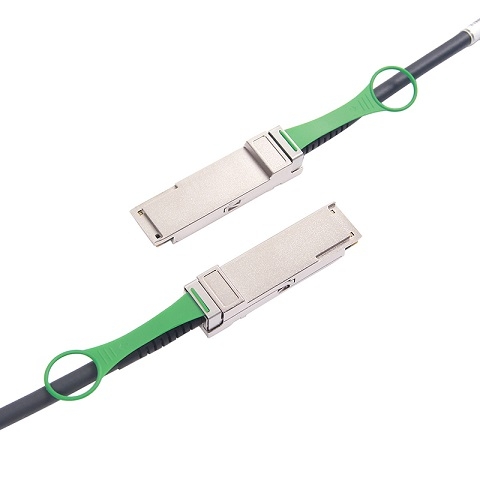

QSFP+ (Quad Small Form-factor Pluggable Plus) Cable Assemblies are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. QSFP+ cables are used for 40 GbE and Infniband standards, to maximize performance.

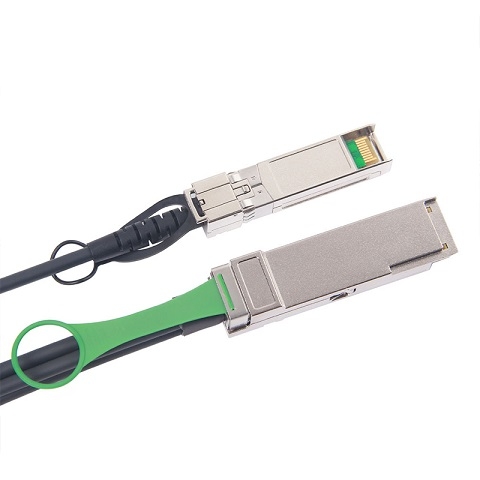

QSFP to 4x SFP+ Splitter Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.
For typical applications, users can install this splitter cable between an available QSFP port on their 40 Gigabit/s rated switch and feed up to four upstream 10GbE-SFP+ enabled switches.Each QSFP-SFP+ splitter cable features a single QSFP connector (SFF-8436) rated for 40-Gb/s on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.
Applications
● 40Gigabit Ethernet ( 40G BASE - CR4)
● InfiniBand-SDR, DDR, QDR
● Communications: Switches, Routers, and HBA s
● Networked storage systems
● Computer cluster cross-connect
● InfiniBand SDR, DDR
● Ethernet 1G, 10G
● FibreChannel
● Rack-to-Rack, Shelf-to-Shelf Interconnect
● Networking
● Storage
● Hubs, switches, routers, servers
