Ethernet NIC / CNA

10G 25G 40G Network Interface Card

The Ethernet CNA provides the best networking performance available
詳細介紹

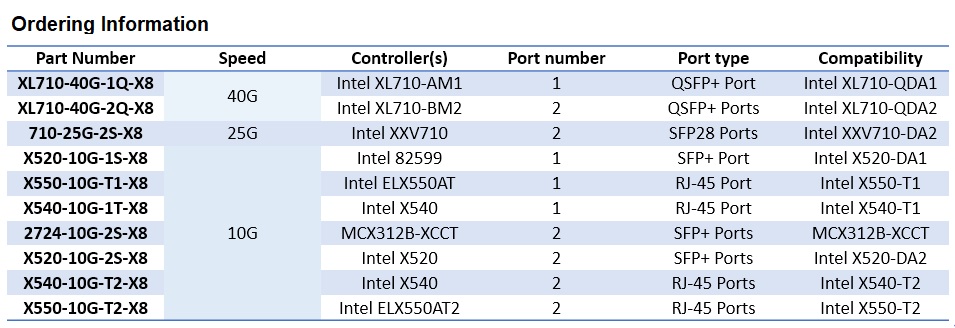

Part Number

Speed

Controller(s)

Port number

Port type

Compatibility

XL710-40G-1Q-X8

40G

Intel XL710-AM1

1

QSFP+ Port

Intel XL710-QDA1

XL710-40G-2Q-X8

Intel XL710-BM2

2

QSFP+ Ports

Intel XL710-QDA2

710-25G-2S-X8

25G

Intel XXV710

2

SFP28 Ports

Intel XXV710-DA2

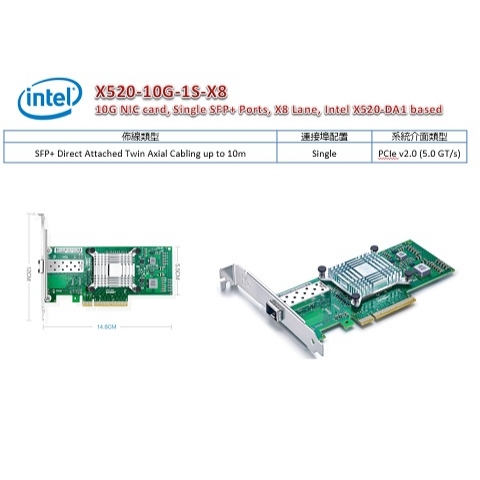

X520-10G-1S-X8

10G

Intel 82599

1

SFP+ Port

Intel X520-DA1

X550-10G-T1-X8

Intel ELX550AT

1

RJ-45 Port

Intel X550-T1

X540-10G-1T-X8

Intel X540

1

RJ-45 Port

Intel X540-T1

2724-10G-2S-X8

MCX312B-XCCT

2

SFP+ Ports

MCX312B-XCCT

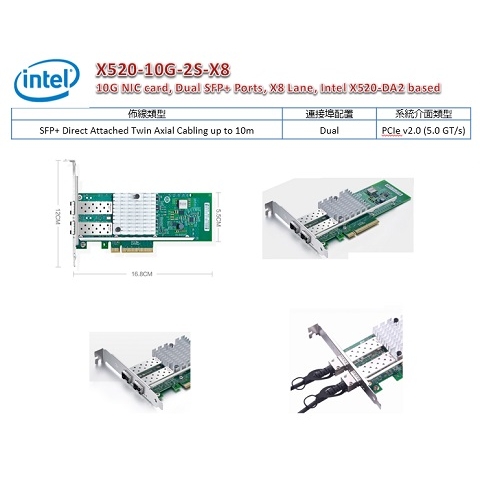

X520-10G-2S-X8

Intel X520

2

SFP+ Ports

Intel X520-DA2

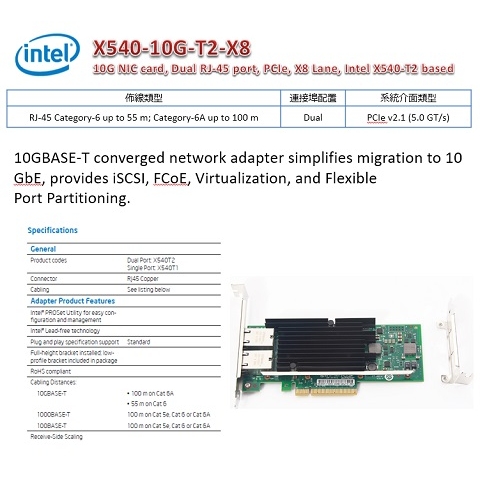

X540-10G-T2-X8

Intel X540

2

RJ-45 Ports

Intel X540-T2

X550-10G-T2-X8

Intel ELX550AT2

2

RJ-45 Ports

Intel X550-T2




The 10G Ethernet CNA provides the best networking performance available in the industry, whether the physical port is configured in an emulation mode using the virtual switch in the Virtual Machine Monitor (VMM), or is directly assigned to a virtual machine. In the emulation mode, Intel’s I/O technology, Virtual Machine Device queues1 (VMDq) optimizes network performance by offloading data sorting and copying from the software Virtual Switch in the VMM to the Intel Ethernet Controller. This configuration is best suited for a large number of VMs running standard applications that have limited bandwidth and latency requirements.

25 Gigabit Ethernet CNA are designed for Servers and high-end appliances. It is based on Intel XL710-BM2 Ethernet controller with fully integrated Gigabit Ethernet Media Access Control (MAC), and SFI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.
The 25 Gigabit Ethernet CNA is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

40 Gigabit Ethernet CNA is designed for Servers and high-end appliances. They offer simple integration into any PCI Express X8 to 40Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. They are based on Intel XL710AM2 and Intel XL710-BM2 Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.
The 40 Gigabit Ethernet CNA is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
