- Backward compatible with QSFP+ and QSFP28 modules
- Compliant with QSFP MSA specification Rev 1.0
- SFF-8679 electrical interface compliant
- CMIS management interface support
|
Product category |
PN |
Description |
|
400G QSFP112 |
QSFP112-400G-CU0.5M |
400G QSFP112 DAC 0.5-m, Passive, 30AWG |
|
QSFP112-400G-CU1.5M |
400G QSFP112 DAC 1.5-m, Passive, 26AWG |
|
|
QSFP112-400G-CU1M |
400G QSFP112 DAC 1-m, Passive, 30AWG |
|
|
QSFP112-400G-CU2M |
400G QSFP112 DAC 2-m, Passive, 26AWG |
|
|
QSFP112-400G-ACC3M |
400G QSFP112 to QSFP112 ACC 3-m active 30AWG |
|
|
QSFP112-400G-ACC5M |
400G QSFP112 to QSFP112 ACC 5-m active 26AWG |
|
|
400G QSFP-DD |
QSFPDD-400G-CU0.5M |
400G QSFP-DD DAC 0.5-m, Passive, 30AWG |
|
QSFPDD-400G-CU1.5M |
400G QSFP-DD DAC 1.5-m, Passive, 30AWG |
|
|
QSFPDD-400G-CU1M |
400G QSFP-DD DAC 1-m, Passive, 30AWG |
|
|
QSFPDD-400G-CU2.5M |
400G QSFP-DD DAC 2.5-m, Passive, 26AWG |
|
|
QSFPDD-400G-CU2M |
400G QSFP-DD DAC 2-m, Passive, 26AWG |
|
|
QSFPDD-400G-CU3M |
400G QSFP-DD DAC 3-m, Passive, 26AWG |
|
|
400G QSFP-DD |

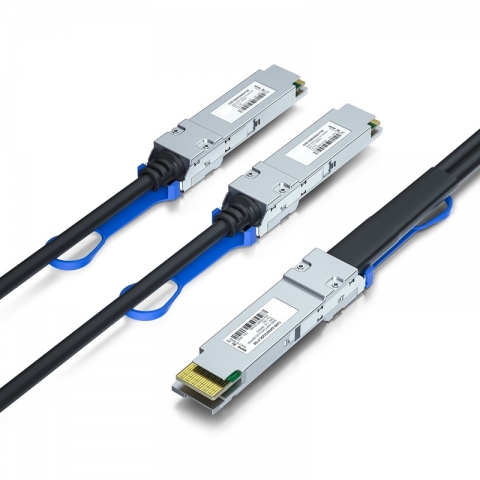

QSFPDD-2XQSFP56-CU0.5M |
400G QSFP-DD to (2x) QSFP56 DAC 0.5-m, Passive, 30AWG |
|
QSFPDD-2XQSFP56-CU1.5M |
400G QSFP-DD to (2x) QSFP56 DAC 1.5-m, Passive, 30AWG |
|
|
QSFPDD-2XQSFP56-CU1M |
400G QSFP-DD to (2x) QSFP56 DAC 1-m, Passive, 30AWG |
|
|
QSFPDD-2XQSFP56-CU2.5M |
400G QSFP-DD to (2x) QSFP56 DAC 2.5-m, Passive, 26AWG |
|
|
QSFPDD-2XQSFP56-CU2M |
400G QSFP-DD to (2x) QSFP56 DAC 2-m, Passive, 26AWG |
|
|
QSFPDD-2XQSFP56-CU3M |
400G QSFP-DD to (2x) QSFP56 DAC 3-m, Passive, 26AWG |
|
|
QSFPDD-4XDSFP56-CU2.5M |
400G QSFP-DD to (4x) DSFP56 DAC 2.5-m, Passive, 26AWG |
|
|

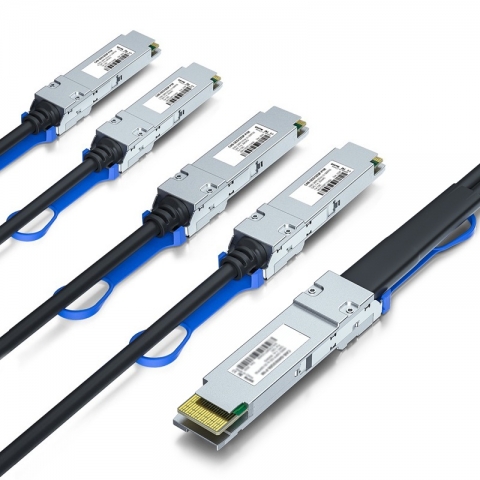

QSFPDD-4XQSFP56-CU0.5M |
400G QSFP-DD to (4x) QSFP56 DAC 0.5-m, Passive, 30AWG |
|
|
QSFPDD-4XQSFP56-CU1.5M |
400G QSFP-DD to (4x) QSFP56 DAC 1.5-m, Passive, 30AWG |
|
|
QSFPDD-4XQSFP56-CU1M |
400G QSFP-DD to (4x) QSFP56 DAC 1-m, Passive, 30AWG |
|
|
QSFPDD-4XQSFP56-CU2.5M |
400G QSFP-DD to (4x) QSFP56 DAC 2.5-m, Passive, 26AWG |
|
|
QSFPDD-4XQSFP56-CU2M |
400G QSFP-DD to (4x) QSFP56 DAC 2-m, Passive, 26AWG |
|
|
QSFPDD-4XQSFP56-CU3M |
400G QSFP-DD to (4x) QSFP56 DAC 3-m, Passive, 26AWG |
|
|

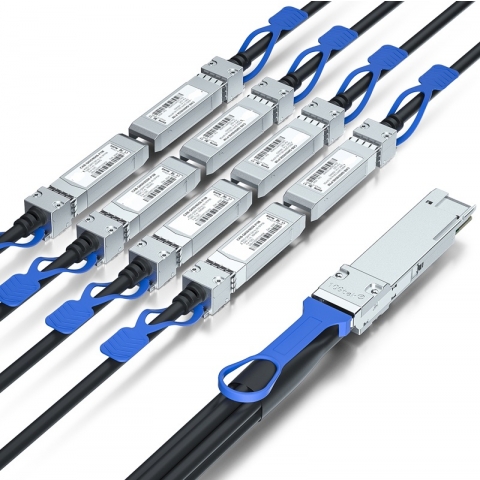

QSFPDD-8XSFP56-CU0.5M |
400G QSFP-DD to (8x) SFP56 DAC 0.5-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP56-CU1.5M |
400G QSFP-DD to (8x) SFP56 DAC 1.5-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP56-CU1M |
400G QSFP-DD to (8x) SFP56 DAC 1-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP56-CU2.5M |
400G QSFP-DD to (8x) SFP56 DAC 2.5-m, Passive, 26AWG |
|
|
QSFPDD-8XSFP56-CU2M |
400G QSFP-DD to (8x) SFP56 DAC 2-m, Passive, 26AWG |
|
|
QSFPDD-8XSFP56-CU3M |
400G QSFP-DD to (8x) SFP56 DAC 3-m, Passive, 26AWG |
