SFP Transceiver

SFP Transceiver

The IEEE 802.3z standard includes 1000BASE-SX for transmission over multi-mode fiber, ...
詳細介紹

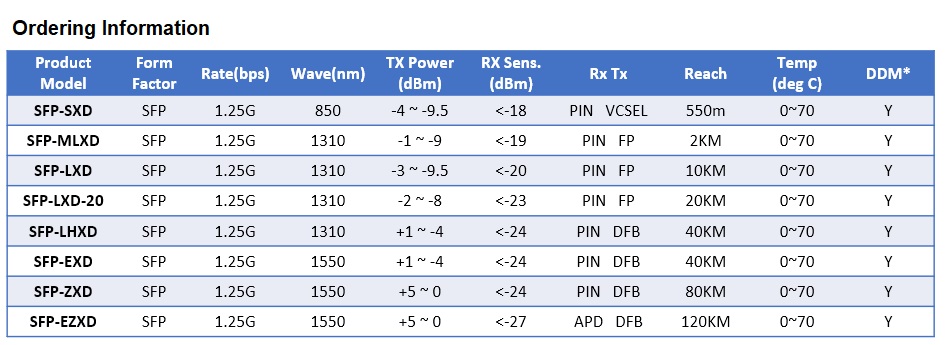

Product Model

Form Factor

Rate(bps)

Wave(nm)

TX Power
(dBm)

RX Sens.
(dBm)

Rx Tx

Reach

Temp
(deg C)

DDM*

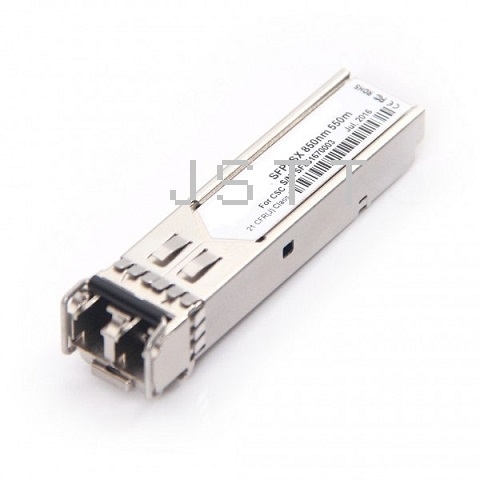

SFP-SXD

SFP

1.25G

850

-4 ~ -9.5

<-18

PIN   VCSEL

550m

0~70

Y

SFP-MLXD

SFP

1.25G

1310

-1 ~ -9

<-19

PIN   FP

2KM

0~70

Y

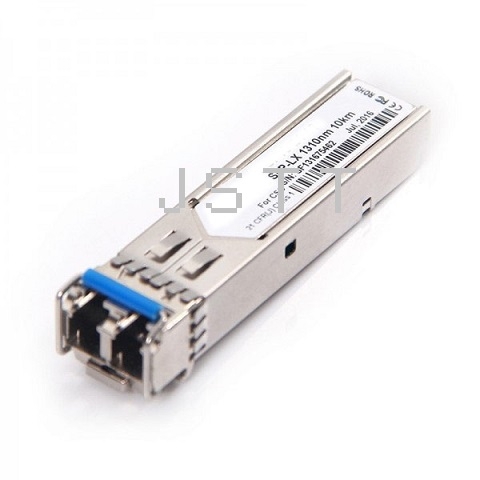

SFP-LXD

SFP

1.25G

1310

-3 ~ -9.5

<-20

PIN   FP

10KM

0~70

Y

SFP-LXD-20

SFP

1.25G

1310

-2 ~ -8

<-23

PIN   FP

20KM

0~70

Y

SFP-LHXD

SFP

1.25G

1310

+1 ~ -4

<-24

PIN   DFB

40KM

0~70

Y

SFP-EXD

SFP

1.25G

1550

+1 ~ -4

<-24

PIN   DFB

40KM

0~70

Y

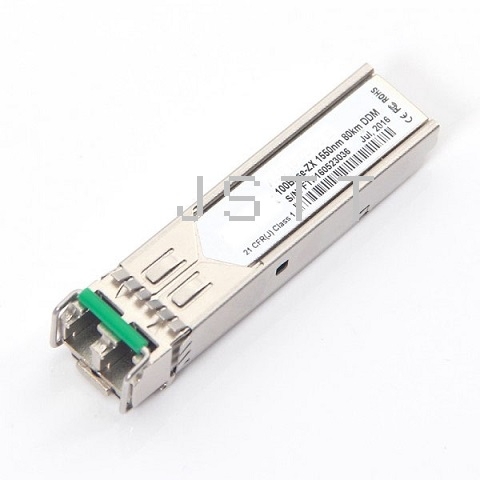

SFP-ZXD

SFP

1.25G

1550

+5 ~ 0

<-24

PIN   DFB

80KM

0~70

Y

SFP-EZXD

SFP

1.25G

1550

+5 ~ 0

<-27

APD   DFB

120KM

0~70

Y

Key Features

  • 850nm VCSEL (MM), 1310nm FP/DFB LD, 1550nm DFB LD
  • Single +3.3V Power Supply
  • AC/AC or DC/AC Differential Electrical Interface
  • Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
  • Duplex LC Connector
  • Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
  • Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps
  • Class 1 laser product complies with EN 60825-1
  • with DDM (Digital Diagnostic Monitor)
