Features:
- Compliant with QSFP DD MSA Specification Rev 3.0
- SFF‐8679 electrical interface compliant
- SFF‐8636 management interface support
- Compliant with SFF-8665
- Compliant with IEEE802.3bj Standard
- Support 25G (NRZ) electrical data rates/channel
- I2C for EEPROM communication
- Pull to Release latch design
- Excellent EMI/EMC performance 360degree cable shield termination
- Low loss, stronger mechanical features
- Operating Case Temperature: 0℃~70
- Compliant with RoHS
|
Product category |
PN |
Description |
|
200G QSFP-DD |
QSFP-DD-200G-CU0.5M |
200G QSFP-DD DAC 0.5-m, Passive, 30AWG |
|
QSFP-DD-200G-CU1M |
200G QSFP-DD DAC 1-m, Passive, 30AWG |
|
|
QSFP-DD-200G-CU2.5M |
200G QSFP-DD DAC 2.5-m, Passive, 26AWG |
|
|
QSFP-DD-200G-CU2M |
200G QSFP-DD DAC 2-m, Passive, 30AWG |
|
|
QSFP-DD-200G-CU3M |
200G QSFP-DD DAC 3-m, Passive, 26AWG |
|
|
QSFP-DD-200G-CU5M |
200G QSFP-DD DAC 5-m, Passive, 26AWG |
|
|

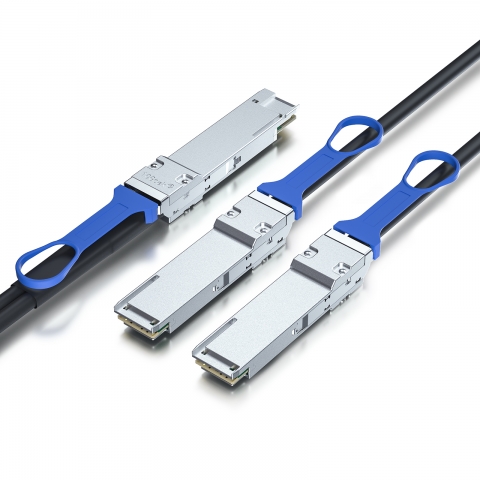

200G QSFP-DD |
QSFPDD-2XQSFP28-CU0.5M |
200G QSFP-DD to (2x) QSFP28 DAC 0.5-m, Passive, 30AWG |
|
QSFPDD-2XQSFP28-CU1.5M |
200G QSFP-DD to (2x) QSFP28 DAC 1.5-m, Passive, 30AWG |
|
|
QSFPDD-2XQSFP28-CU1M |
200G QSFP-DD to (2x) QSFP28 DAC 1-m, Passive, 30AWG |
|
|
QSFPDD-2XQSFP28-CU2.5M |
200G QSFP-DD to (2x) QSFP28 DAC 2.5-m, Passive, 30AWG |
|
|
QSFPDD-2XQSFP28-CU2M |
200G QSFP-DD to (2x) QSFP28 DAC 2-m, Passive, 30AWG |
|
|
QSFPDD-2XQSFP28-CU3M |
200G QSFP-DD to (2x) QSFP28 DAC 3-m, Passive, 26AWG |
|
|
QSFPDD-4XQSFP28-CU0.5M |
200G QSFP-DD to (4x) QSFP28 DAC 0.5-m, Passive, 30AWG |
|
|
QSFPDD-4XQSFP28-CU1.5M |
200G QSFP-DD to (4x) QSFP28 DAC 1.5-m, Passive, 30AWG |
|
|
QSFPDD-4XQSFP28-CU2.5M |
200G QSFP-DD to (4x) QSFP28 DAC 2.5-m, Passive, 30AWG |
|
|
QSFPDD-4XQSFP28-CU2M |
200G QSFP-DD to (4x) QSFP28 DAC 2-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP28-CU0.5M |
200G QSFP-DD to (8x) SFP28 DAC 0.5-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP28-CU1.5M |
200G QSFP-DD to (8x) SFP28 DAC 1.5-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP28-CU1M |
200G QSFP-DD to (8x) SFP28 DAC 1-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP28-CU2.5M |
200G QSFP-DD to (8x) SFP28 DAC 2.5-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP28-CU2M |
200G QSFP-DD to (8x) SFP28 DAC 2-m, Passive, 30AWG |
|
|
QSFPDD-8XSFP28-CU3M |
200G QSFP-DD to (8x) SFP28 DAC 3-m, Passive, 26AWG |
|
|
QSFPDD-8XSFP28-CU5M |
200G QSFP-DD to (8x) SFP28 DAC 5-m, Passive, 26AWG |
