- Same footprint as QSFP interconnects for backward compatibility
- Length: 0.5~3 meters
- Passive
- MCU
- 30/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range : 0~70℃
|
Product category |
PN |
Description |
|
200G QSFP56 |
QSFP56-200G-CU0.5M |
200G QSFP56 DAC 0.5-m, Passive, 30AWG |
|
QSFP56-200G-CU1.5M |
200G QSFP56 DAC 1.5-m, Passive, 30AWG |
|
|
QSFP56-200G-CU1M |
200G QSFP56 DAC 1-m, Passive, 30AWG |
|
|
QSFP56-200G-CU2.5M |
200G QSFP56 DAC 2.5-m, Passive, 26AWG |
|
|
QSFP56-200G-CU2M |
200G QSFP56 DAC 2-m, Passive, 26AWG |
|
|
QSFP56-200G-CU3M |
200G QSFP56 DAC 3-m, Passive, 26AWG |
|
|

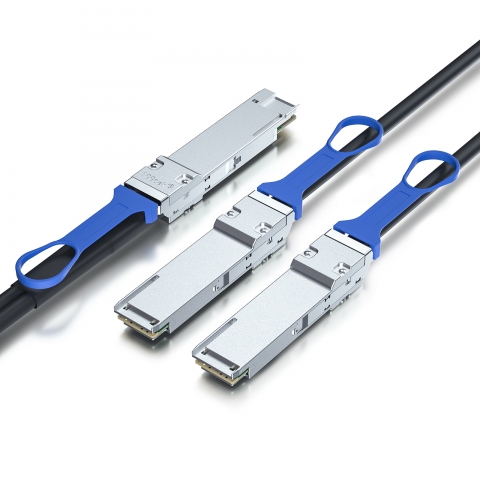

200G QSFP56 |
QSFP56-2XQSFP56-CU0.5M |
200G QSFP56 to (2x) QSFP56 DAC 0.5-m, Passive, 30AWG, lane 1-2 and 1-2 |
|
QSFP56-2XQSFP56-CU1.5M |
200G QSFP56 to (2x) QSFP56 DAC 1.5-m, Passive, 30AWG, lane 1-2 and 1-2 |
|
|
QSFP56-2XQSFP56-CU1M |
200G QSFP56 to (2x) QSFP56 DAC 1-m, Passive, 30AWG, lane 1-2 and 1-2 |
|
|
QSFP56-2XQSFP56-CU2M |
200G QSFP56 to (2x) QSFP56 DAC 2-m, Passive, 26AWG, lane 1-2 and 1-2 |
|
|
QSFP56-2XQSFP56-CU3M |
200G QSFP56 to (2x) QSFP56 DAC 3-m, Passive, 26AWG, lane 1-2 and 1-2 |
|
|

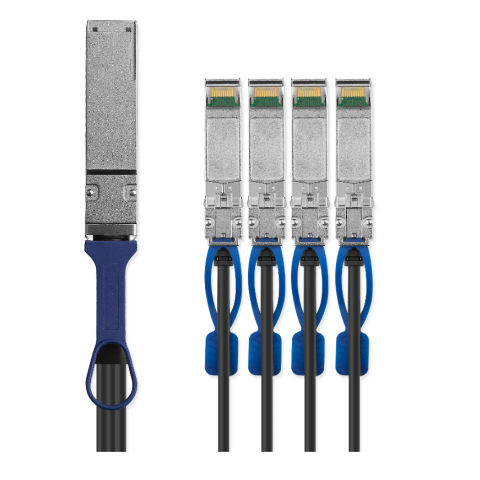

QSFP56-4XSFP56-CU2.5M |
200G QSFP56 to (4x) SFP56 DAC 2.5-m, Passive, 26AWG |
|
|
QSFP56-4XSFP56-CU2M |
200G QSFP56 to (4x) SFP56 DAC 2-m, Passive, 26AWG |
|
|
QSFP56-4XSFP56-CU3M |
200G QSFP56 to (4x) SFP56 DAC 3-m, Passive, 26AWG |
