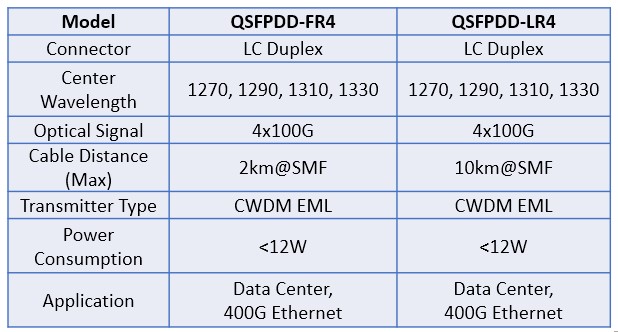

Ordering Information
|
Model |
QSFPDD-FR4 |
QSFPDD-LR4 |
|
Connector |
LC Duplex |
LC Duplex |
|
Center Wavelength |
1270, 1290, 1310, 1330 |
1270, 1290, 1310, 1330 |
|
Optical Signal |
4x100G |
4x100G |
|
Cable Distance (Max) |
2km@SMF |
10km@SMF |
|
Transmitter Type |
CWDM EML |
CWDM EML |
|
Power Consumption |
<12W |
<12W |
|
Application |
Data Center, 400G Ethernet |
Data Center, 400G Ethernet |
Features:
- Compliant with 400G-FR4 (IEEE892.3cu)
- Compliant with 100G Lambda MSA: 400GBASE-LR4-10 optical interface
- Compliant with IEEE 802.3bs standard: 400GAUI-8 electrical interface
- Compliant with QSFP-DD MSA HW Rev 5.1; type 2 housing with duplex LC connector
- Compliant with QSFP-DD CMIS Rev 4.0
- Maximum power consumption 10 W
- Case operating temperature 0°C to 70°C
- Two wire serial Interface with digital diagnostic monitoring
- Complies with EU Directive 2011/65/EU (RoHS compliant)
- Class 1 Laser
