SFP Transceiver

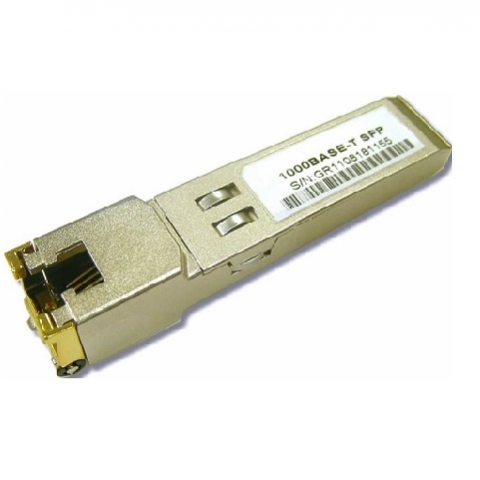

Copper SFP

Support 1000BASE-T or 10/100/1000 BASE-T with SGMII interface or 100 BASE-T
詳細介紹

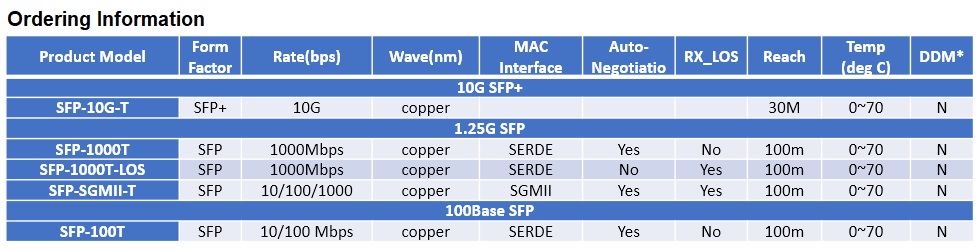

Product Model

Form Factor

Rate(bps)

Wave(nm)

MAC Interface

Auto-Negotiation

RX_LOS

Reach

Temp
(deg C)

DDM*

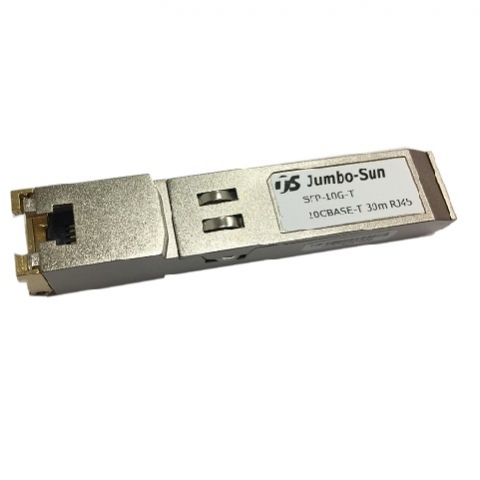

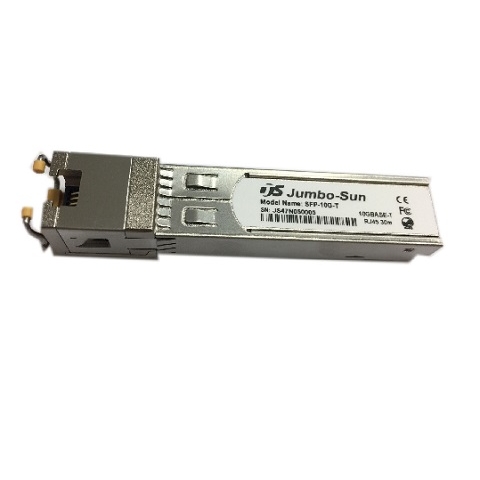

10G SFP+

SFP-10G-T

SFP+

10G

copper



30M

0~70

N

1.25G SFP

SFP-1000T

SFP

1000Mbps

copper

SERDE

Yes

No

100m

0~70

N

SFP-1000T-LOS

SFP

1000Mbps

copper

SERDE

No

Yes

100m

0~70

N

SFP-SGMII-T

SFP

10/100/1000

copper

SGMII

Yes

Yes

100m

0~70

N

100Base SFP

SFP-100T

SFP

10/100 Mbps

copper

SERDE

Yes

No

100m

0~70

N




Features

Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

TX Disable and RX Los/without Los function

Fully metallic enclosure for low EMI

Low power dissipation (1.05 W typical)

Compact RJ-45 connector assembly

Access to physical layer IC via 2-wire serial bus

1000 BASE-T operation in host systems with SERDES interface

10/100/1000Base-T operation in the host equipments with SGMII inerface

Operating case temperature range of 0°C to +70°C

Compliant with SFP MSA

Compliant with IEEE Std 802.3-2002

Compliant with FCC 47 CFR Part 15, Class B

Compliant with RoHs.

Applications

1.25 Gigabit Ethernet over Cat 5 cable


**************************************

Features

Supports Links up to 30m using Cat 6a/7 Cable

Compliant with the 10G BASE-T,1000BASE-T, 100BASE-TX standards as specified in IEEE STD 802.3an, 802.3ab and  802.3au.

Compliant with IEEE 802.3az

Compliant with SFF-8431 and SFF-8432 MSA

Low Power Consumption (2.5W MAX @ 30m)

Auto-negotiates with other 10GBase-T PHYs

I2C 2-Wire Interface for Serial ID and PHY Register Access

Auto-sense MDI/MDIX

RoHS Compliance

Operating temperature range: 0 to 70

Application

10Gbps Ethernet over Category 6a/7 Cable
