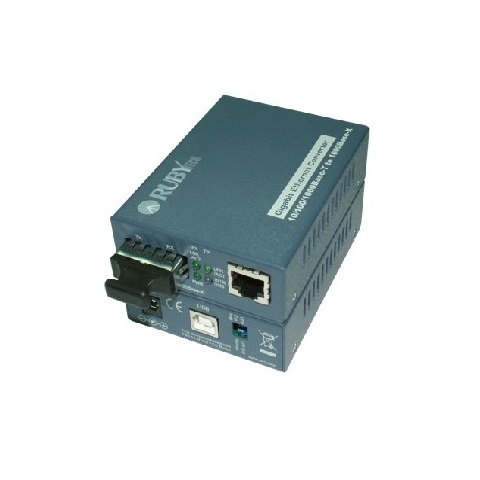

Rubytech 10/100/1000M Ethernet Media Converter

10/100/1000Base-T and 1000Base-SX/LX (SFP) Fiber Ethernet
詳細介紹


Model Name

Description

 GE-C110AU+SFP-SX

10/100/1000Base-T to SFP GbE Media Converter with USB Connector, LC Multi-Mode, 850nm

 GE-C110AU+SFP-LX

10/100/1000Base-T to SFP GbE Media Converter with USB Connector, LC Single-Mode 10km 1310nm

 GE-C110AU+SFP-LHX

10/100/1000Base-T to SFP GbE Media Converter with USB Connector, LC Single-Mode 40km 1310nm

 GE-C110AU+SFP-ZX

10/100/1000Base-T to SFP GbE Media Converter with USB Connector, LC Single-Mode 80km 1550nm

 GE-C110AU+SFP-1000BX10-35

10/100/1000Base-T to SFP GbE Media Converter with USB Connector, Bidi  LC Single-Mode 10km, 1310nm

 GE-C110AU+SFP-1000BX10-53

10/100/1000Base-T to SFP GbE Media Converter with USB Connector, Bidi  LC Single-Mode 10km, 1550nm

 GE-C110AU+SFP-1000BX20-35

10/100/1000Base-T to SFP GbE Media Converter with USB Connector, Bidi  LC Single-Mode 20km, 1310nm

 GE-C110AU+SFP-1000BX20-53

10/100/1000Base-T to SFP GbE Media Converter with USB Connector, Bidi  LC Single-Mode 20km, 1550nm

 GE-C110USC

10/100/1000Base-T to 1000Base-X GbE Media Converter with USB Connector, SC Multi-Mode

 GE-C110USC.S10

10/100/1000Base-T to 1000Base-X GbE Media Converter with USB Connector, SC Single-Mode 10km

 GE-C110USC.S30

10/100/1000Base-T to 1000Base-X GbE Media Converter with USB Connector, SC Single-Mode 30km

 GE-C110USC.S50

10/100/1000Base-T to 1000Base-X GbE Media Converter with USB Connector, SC Single-Mode 50km

 GE-C110UBS3.S20

10/100/1000Base-T to 1000Base-X GbE Media Converter with USB Connector, Bidi SC Single-Mode 20km, 1310nm

 GE-C110UBS5.S20

10/100/1000Base-T to 1000Base-X GbE Media Converter with USB Connector, Bidi SC Single-Mode 20km, 1550nm


Key Features

  • Supports one 10/100/1000Base-T Gigabit Ethernet UTP port and one 1000Base-SX / LX Gigabit Ethernet Fiber port
  • Supports 802.3x flow control for full-duplex ports and backpressure for half-duplex ports
  • Supports comprehensive types of fiber with different distances and connections, including Bidi/LC and so on
  • RoHS Compliance
  • DIP Switch to set configurations
  • Supports independent LFP function
  • Supports jumbo frame (Normal Mode: 2KB, Cut-Through Mode: 9KB)
  • Standards
  1. IEEE802.3 10Base-T
  2. IEEE802.3u 100ase-T
  3. IEEE802.3z/ab 1000Base-T
  4. IEEE802.3x full-duplex flow control
