Model Name |
Description |
|
FE-C130ST |

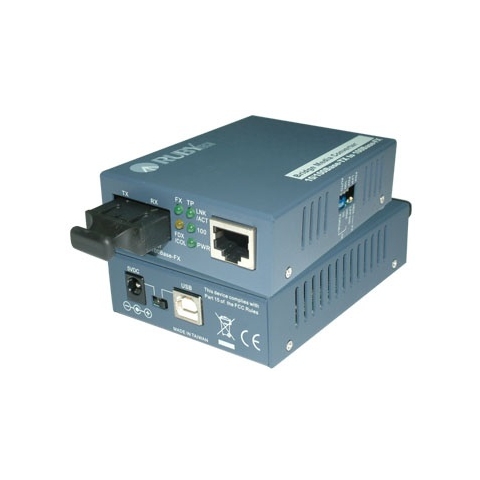

10/100Base-TX to 100Base-FX FE Media Converter with LFP, ST MM |
|
FE-C130SC |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, SC MM |
|
FE-C130SC.S05 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, SC SM 5km |
|
FE-C130SC.S20 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, SC SM 20km |
|
FE-C130SC.S40 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, SC SM 40km |
|
FE-C130SC.S60 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, SC SM 60km |
|
FE-C130SC.S80 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, SC SM 80km |
|
FE-C130SC.SA0 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, SC SM 100km |
|
FE-C130BS3.S20 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, Bidi SC SM 20km, 1310nm |
|
FE-C130BS3.S40 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, Bidi SC SM 40km, 1310nm |
|
FE-C130BS3.S60 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, Bidi SC SM 60km, 1310nm |
|
FE-C130BS5.S20 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, Bidi SC SM 20km, 1550nm |
|
FE-C130BS5.S40 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, Bidi SC SM 40km, 1550nm |
|
FE-C130BS5.S60 |
10/100Base-TX to 100Base-FX FE Media Converter with LFP, Bidi SC SM 60km, 1550nm |
Key Features
- LFP (Link Fault Pass-through) Function
- Power from External Power Adapter or from USB Port
- Choice of SC, ST or LC connector for multimode and single mode
- DIP Switch to set configurations
- Supports packet length up to 1536 bytes
- RoHS Compliance
