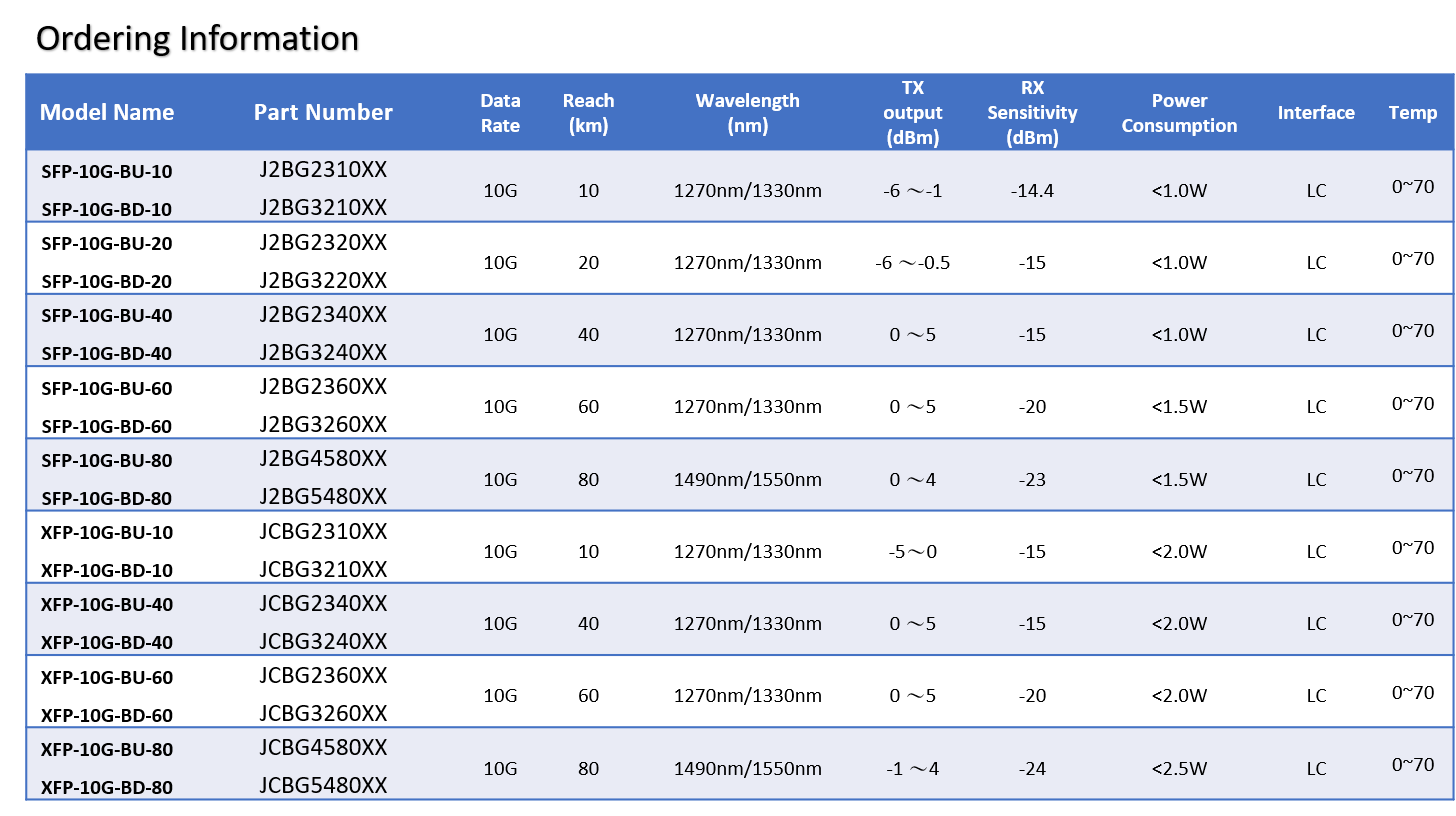

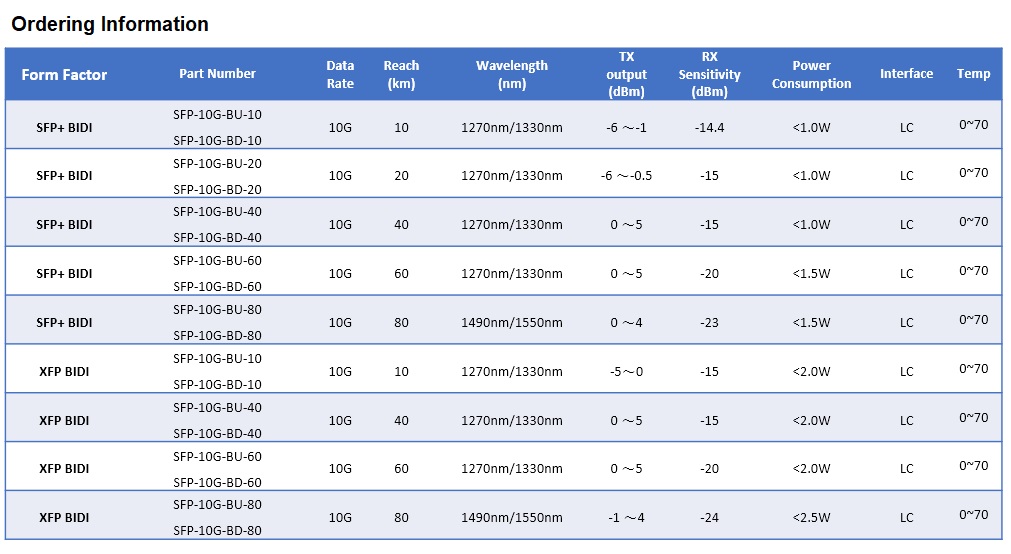

Model Name |
Part Number |
Data Rate |
Reach |
Wavelength |
TX output |
RX Sensitivity |
Power Consumption |
Interface |
Temp |
|
SFP-10G-BU-10 SFP-10G-BD-10 |
J2BG2310XX J2BG3210XX |
10G |
10 |
1270nm/1330nm |
-6 ～-1 |
-14.4 |
<1.0W |
LC |
0~70 |
|
SFP-10G-BU-20 SFP-10G-BD-20 |
J2BG2320XX J2BG3220XX |
10G |
20 |
1270nm/1330nm |
-6 ～-0.5 |
-15 |
<1.0W |
LC |
0~70 |
|
SFP-10G-BU-40 SFP-10G-BD-40 |
J2BG2340XX J2BG3240XX |
10G |
40 |
1270nm/1330nm |
0 ～5 |
-15 |
<1.0W |
LC |
0~70 |
|
SFP-10G-BU-60 SFP-10G-BD-60 |
J2BG2360XX J2BG3260XX |
10G |
60 |
1270nm/1330nm |
0 ～5 |
-20 |
<1.5W |
LC |
0~70 |
|

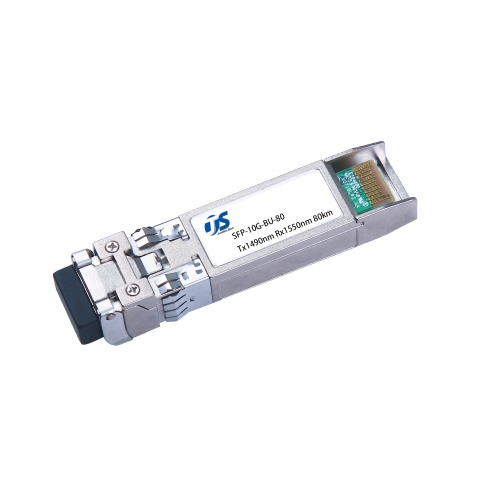

SFP-10G-BU-80 SFP-10G-BD-80 |
J2BG4580XX J2BG5480XX |
10G |
80 |
1490nm/1550nm |
0 ～4 |
-23 |
<1.5W |
LC |
0~70 |
|
XFP-10G-BU-10 XFP-10G-BD-10 |
JCBG2310XX JCBG3210XX |
10G |
10 |
1270nm/1330nm |
-5～0 |
-15 |
<2.0W |
LC |
0~70 |
|

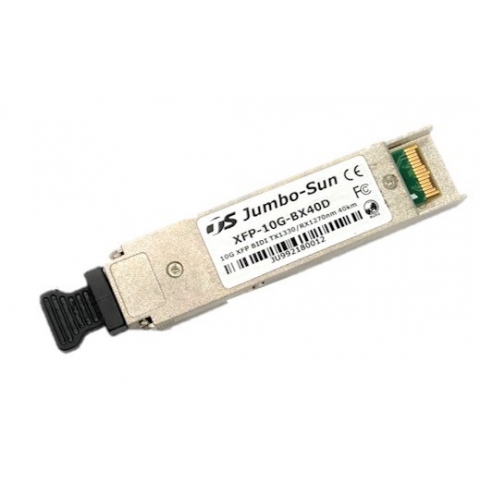

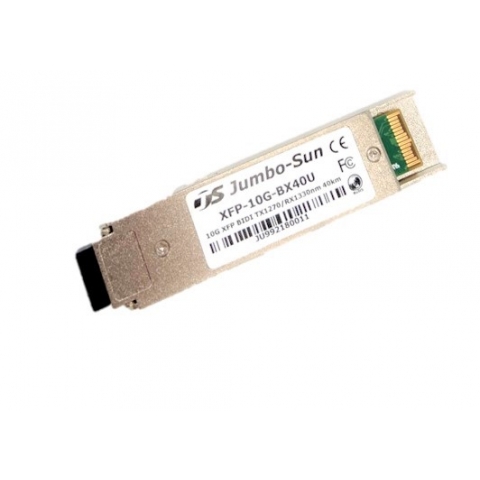

XFP-10G-BU-40 XFP-10G-BD-40 |
JCBG2340XX JCBG3240XX |
10G |
40 |
1270nm/1330nm |
0 ～5 |
-15 |
<2.0W |
LC |
0~70 |
|
XFP-10G-BU-60 XFP-10G-BD-60 |
JCBG2360XX JCBG3260XX |
10G |
60 |
1270nm/1330nm |
0 ～5 |
-20 |
<2.0W |
LC |
0~70 |
|
XFP-10G-BU-80 XFP-10G-BD-80 |
JCBG4580XX JCBG5480XX |
10G |
80 |
1490nm/1550nm |
-1 ～4 |
-24 |
<2.5W |
LC |
0~70 |
Key Features
SFP+ BIDI
- One Fiber Bi-Di SFP+ Optical Transceiver, Bidi WDM SFP+
- Up to 11.3 Gbps Bi-directional Data Links
- Fully Compliant with SFP+ MSA
- Compliant to IEEE 802.3ae 10GBASE-BX
- SFF-8472 Digital Diagnostic Function
- Simplex LC Connector
- 1330TX/1270RX,1270TX/1330RX, 1490TX/1550RX, 1550TX/1490RX
- Distance Up to 10, 20, 40, 60, 80 km
- Only Required +3.3 V Power Supply
- RoHS Compliant
- 0 to 70C case operation temperature range

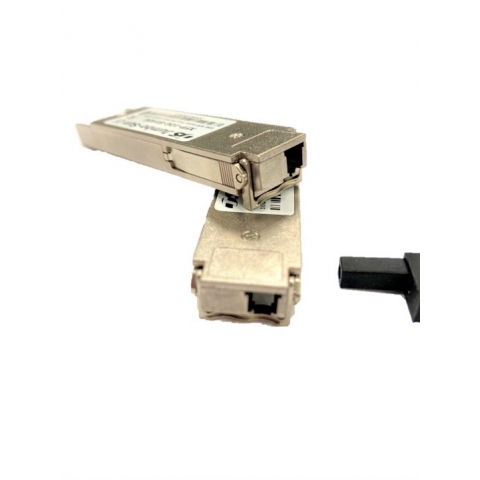

- One Fiber Bi-Directional XFP Optical Transceiver, Bidi WDM XFP
- Fully Compliant with XFP MSA
- Compliant to IEEE 802.3ae 10GBASE-BX
- SFF-8472 Digital Diagnostic Function
- Simplex LC Connector
- 1330TX/1270RX,1270TX/1330RX, 1490TX/1550RX, 1550TX/1490RX
- Distance Up to 10, 40, 60, 80km
- XFI Loopback Mode
- No reference Clock required
- RoHS Compliant
- 0 to 70C Operating
- Simplex LC Connector
