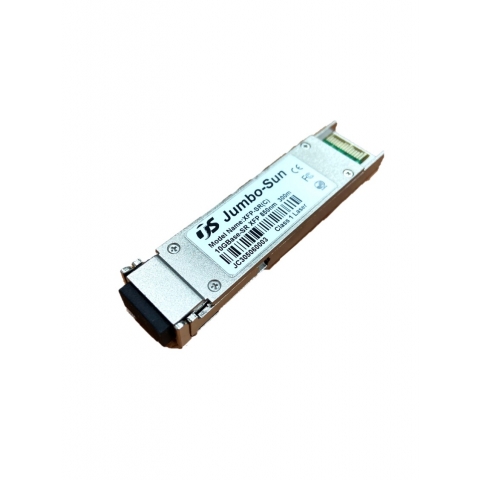

10G XFP

XFP transceiver is a high performance, cost effective modulse for serial optical data ...
詳細介紹

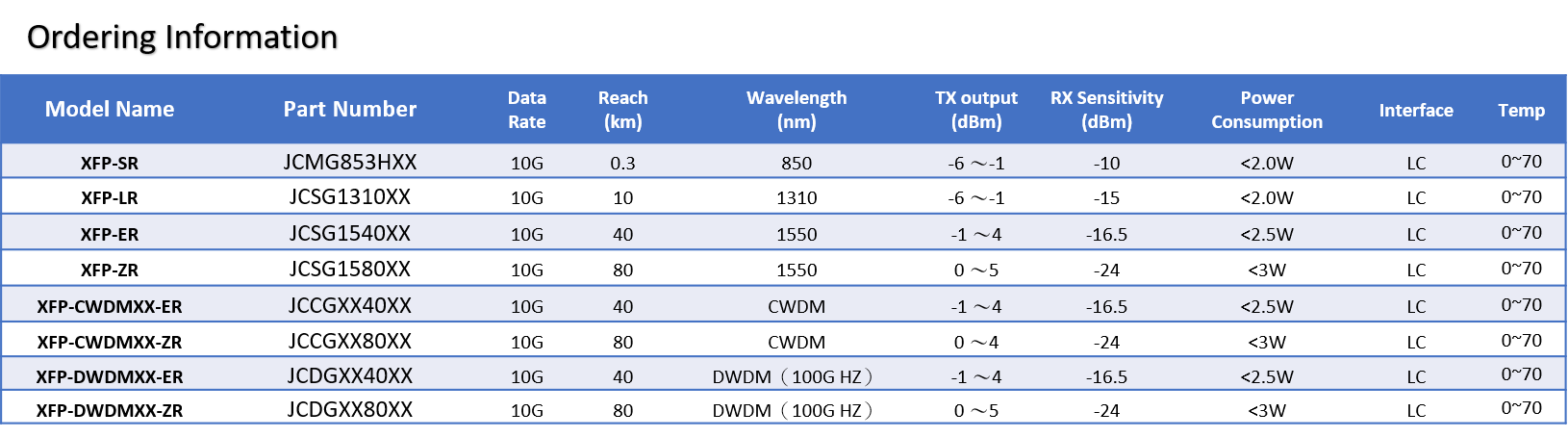

Form Factor

Part Number

Data Rate

Reach
(km)

Wavelength
(nm)

TX output
(dBm)

RX Sensitivity
(dBm)

Power Consumption

Interface

Temp

XFP

XFP-SR

10G

0.3

850

-6 -1

-10

<2.0W

LC

0~70

XFP

XFP-LR

10G

10

1310

-6 -1

-15

<2.0W

LC

0~70

XFP

XFP-ER

10G

40

1550

-1 4

-16.5

<2.5W

LC

0~70

XFP

XFP-ZR

10G

80

1550

0 5

-24

<3W

LC

0~70

XFP CWDM

XFP-CWDMXX-ER

10G

40

CWDM

-1 4

-16.5

<2.5W

LC

0~70

XFP CWDM

XFP-CWDMXX-ZR

10G

40

CWDM

0 4

-24

<3W

LC

0~70

XFP CWDM

XFP-DWDMXX-ER-50

10G

40

DWDM50G HZ

-1 4

-16.5

<2.5W

LC

0~70

XFP CWDM

XFP-DWDMXX-ER

10G

40

DWDM100G HZ

-1 4

-16.5

<2.5W

LC

0~70

XFP CWDM

XFP-DWDMXX-ZR-50

10G

80

DWDM50G HZ

0 5

-24

<3W

LC

0~70

XFP DWDM

XFP-DWDMXX-ZR

10G

80

DWDM100G HZ

0 5

-24

<3W

LC

0~70


Key Features

  • Supports 8.5G, 9.95Gb/s to 11.3Gb/s bit rates
  • IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.
  • Hot-pluggable XFP footprint
  • Maximum link length of 80km
  • DFB or Temperature-stabilized EML Transmitter
  • XFI Loopback Mode

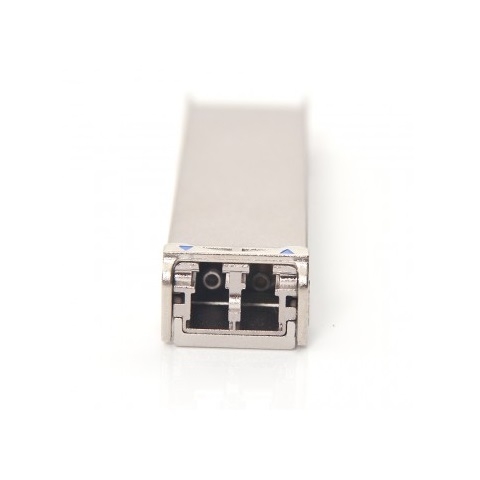

  • Duplex LC connector
  • Low Power dissipation
  • Superior Thermal and EMI integrity performance to support high port densities
  • LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
  • Built-in digital diagnostic functions, DDMI
  • Temperature range 0°C to 70°C or Indutrial Temperature range on request
  • RoHS-6, CE, FCC certifactes
