SFP+ Transceiver

10G SFP+

SFP+ transceiver are multi-purpose optical modules for 1~11.1Gbit/s, SDH/SONET, data t...
詳細介紹

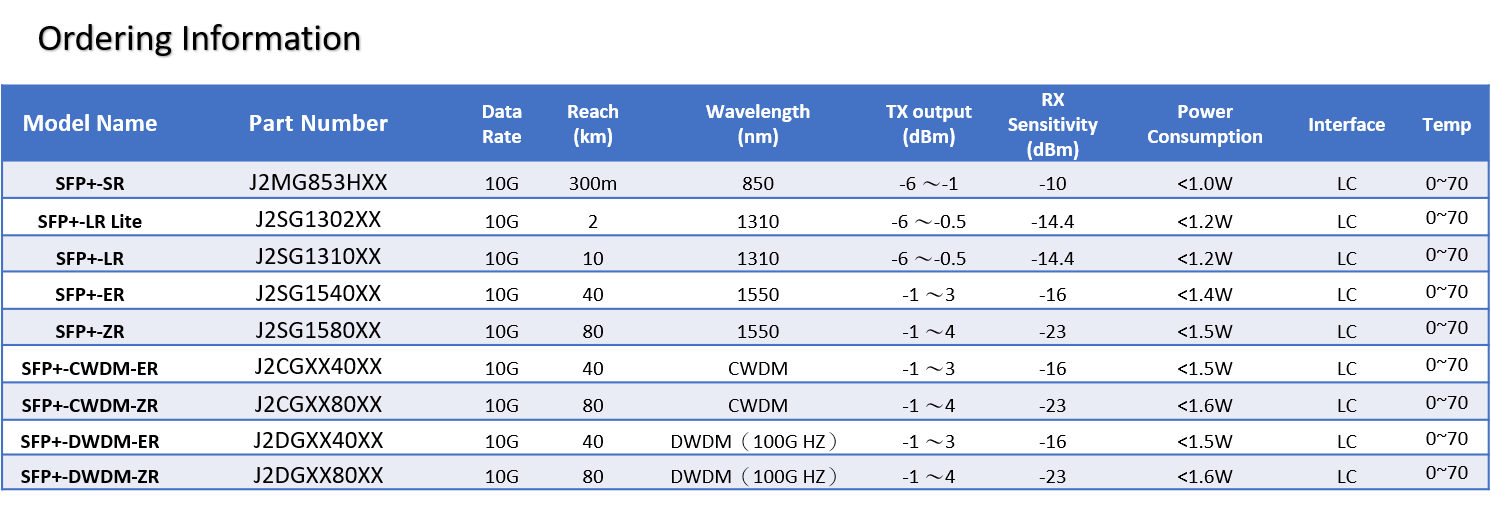

Form Factor

Part Number

Data Rate

Reach
(km)

Wavelength
(nm)

TX output
(dBm)

RX Sensitivity
(dBm)

Power Consumption

Interface

Temp

SFP+

SFP+-SR

10G

300m

850

-6 -1

-10

<1.0W

LC

0~70

SFP+

SFP+-LR Lite

10G

2

1310

-6 -0.5

-14.4

<1.2W

LC

0~70

SFP+

SFP+-LR

10G

10

1310

-6 -0.5

-14.4

<1.2W

LC

0~70

SFP+

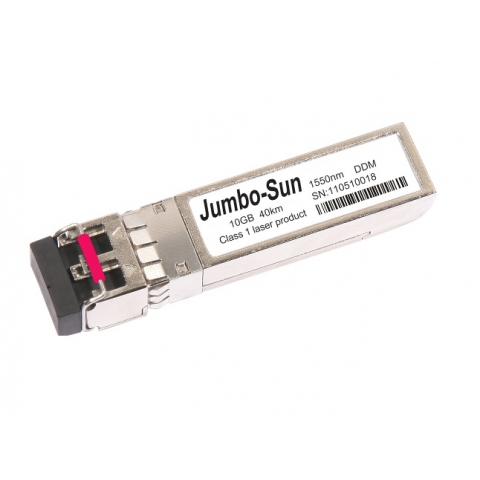

SFP+-ER

10G

40

1550

-1 3

-16

<1.4W

LC

0~70

SFP+

SFP+-ZR

10G

80

1550

-1 4

-23

<1.5W

LC

0~70

SFP+ CWDM

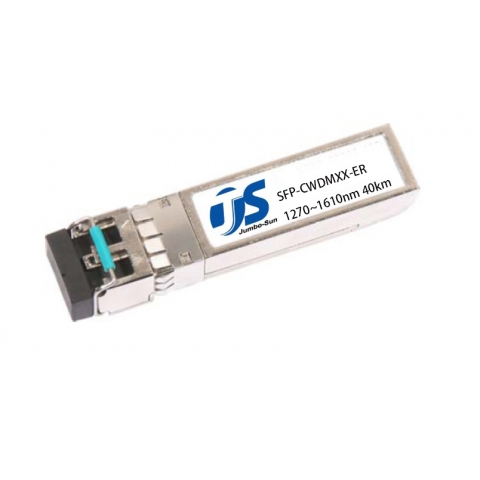

SFP+-CWDMXX-ER

10G

40

CWDM

-1 3

-16

<1.5W

LC

0~70

SFP+ CWDM

SFP+-CWDMXX-ZR

10G

80

CWDM

-1 4

-23

<1.6W

LC

0~70

SFP+ DWDM

SFP+-DWDMXX-ER

10G

40

DWDM100G HZ

-1 3

-16

<1.5W

LC

0~70

SFP+ DWDM

SFP+-DWDMXX-ZR

10G

80

DWDM100G HZ

-1 4

-23

<1.6W

LC

0~70


Key Features

  • Compliant to SFP+ Electrical MSA SFF-8431
  • Compliant to SFP+ Mechanical MSA SFF-8432
  • Multi rate of up to 11.3Gb/s
  • 10G Ethernet compliance or SDH/SONET
  • Transmission distance up to 100km (SM fiber)
  • Low power consumption
  • 0C to +70C / -40~85C case operating temperature range
  • Laser Class 1 IEC / CDRH compliant
  • RoHS 6/6 compliant
  • Compliant with product safety standards
